GlucoScreen

IMWUT 2023A readerless glucose test strip read by any smartphone touchscreen.

Early detection of prediabetes can forestall or reverse more serious illness, but current screening requires visits to a healthcare facility or a dedicated glucometer, both of which are costly or inaccessible for many populations.

GlucoScreen is a readerless glucose test strip that enables affordable, single-use, at-home glucose testing, using the phone's capacitive touchscreen to read and display results. By adding minimal, low-cost, battery-free electronics to commercially available test strips, it works with any smartphone and removes the need for a separate reader.

In an in vitro evaluation across five phones, GlucoScreen's mean absolute error was 4.52 mg/dl (Accu-Chek strips) and 3.7 mg/dl (True Metrix strips), compared to 4.98 and 5.44 mg/dl for the corresponding glucometers. In a clinical study with 75 patients, GlucoScreen's error was 10.47 mg/dl versus 9.88 mg/dl for the Accu-Chek glucometer, comparable to commercial devices.

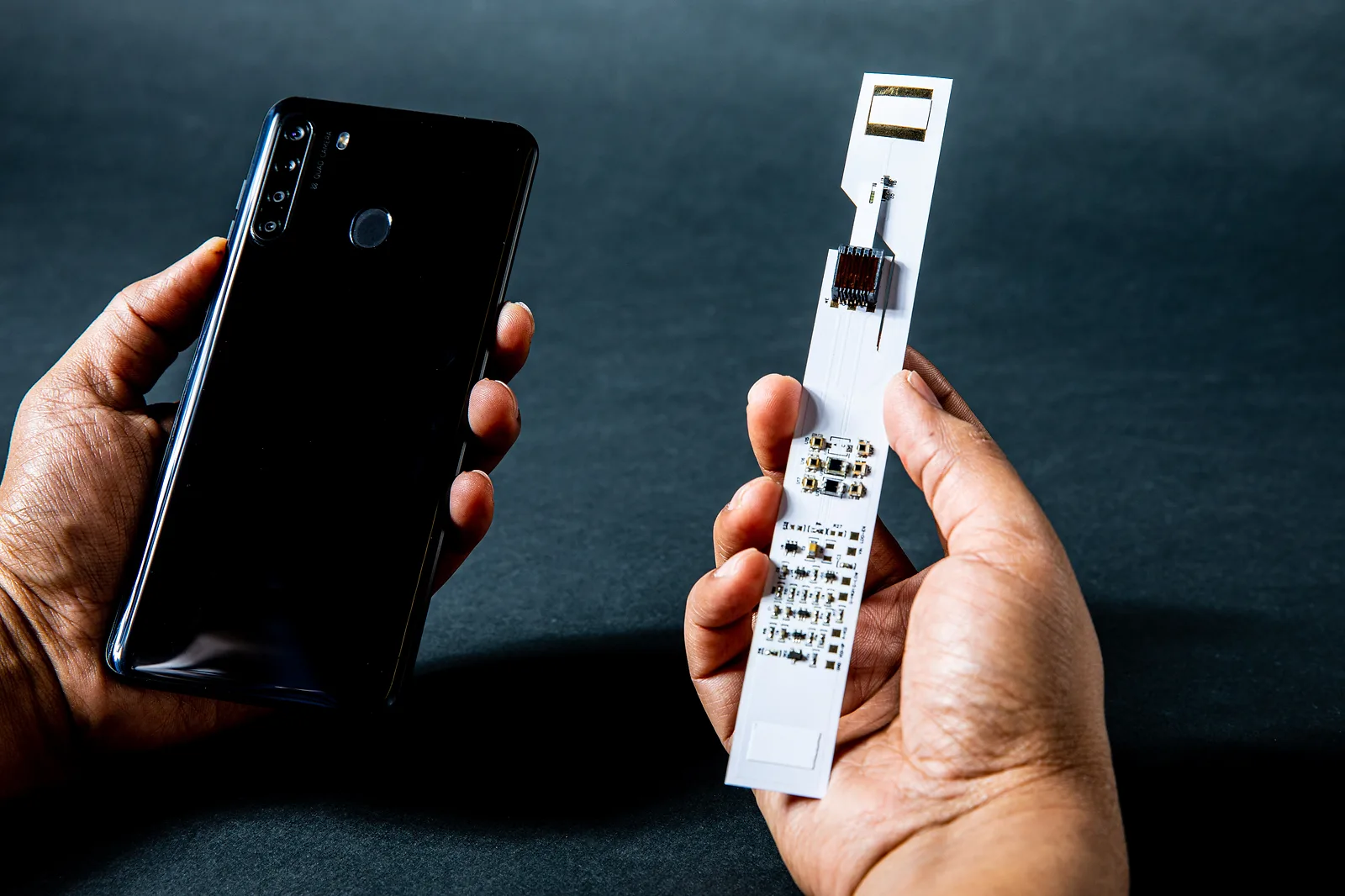

GlucoScreen: a disposable glucose test strip that attaches to any smartphone, so no separate glucose meter is needed.
GlucoScreen: a disposable glucose test strip that attaches to any smartphone, so no separate glucose meter is needed.

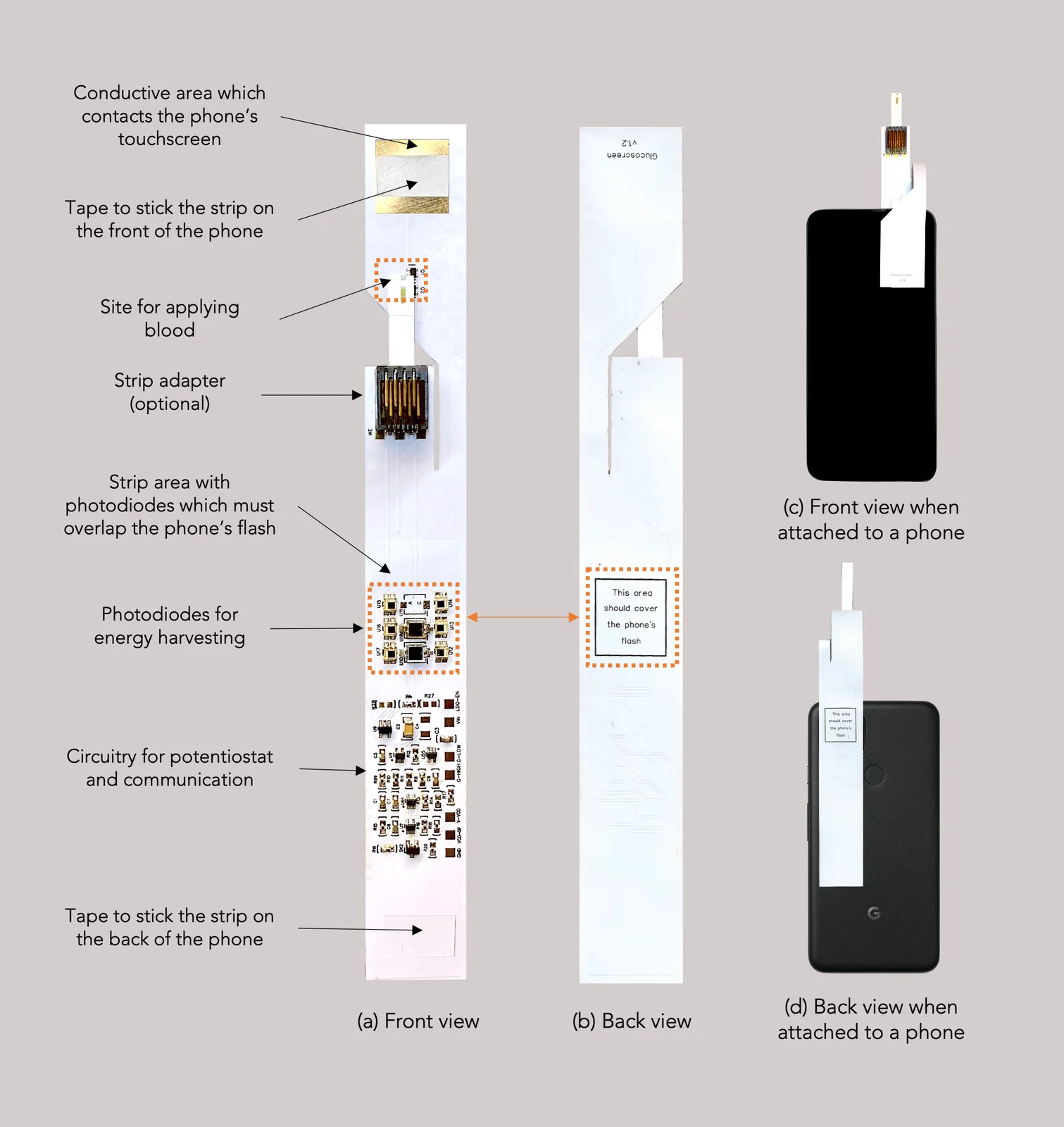

How it works: a standard glucose test strip plus a tiny battery-free circuit. The circuit taps the phone's touchscreen in a pattern that encodes the glucose level, and an app decodes it.
How it works: a standard glucose test strip plus a tiny battery-free circuit. The circuit taps the phone's touchscreen in a pattern that encodes the glucose level, and an app decodes it.

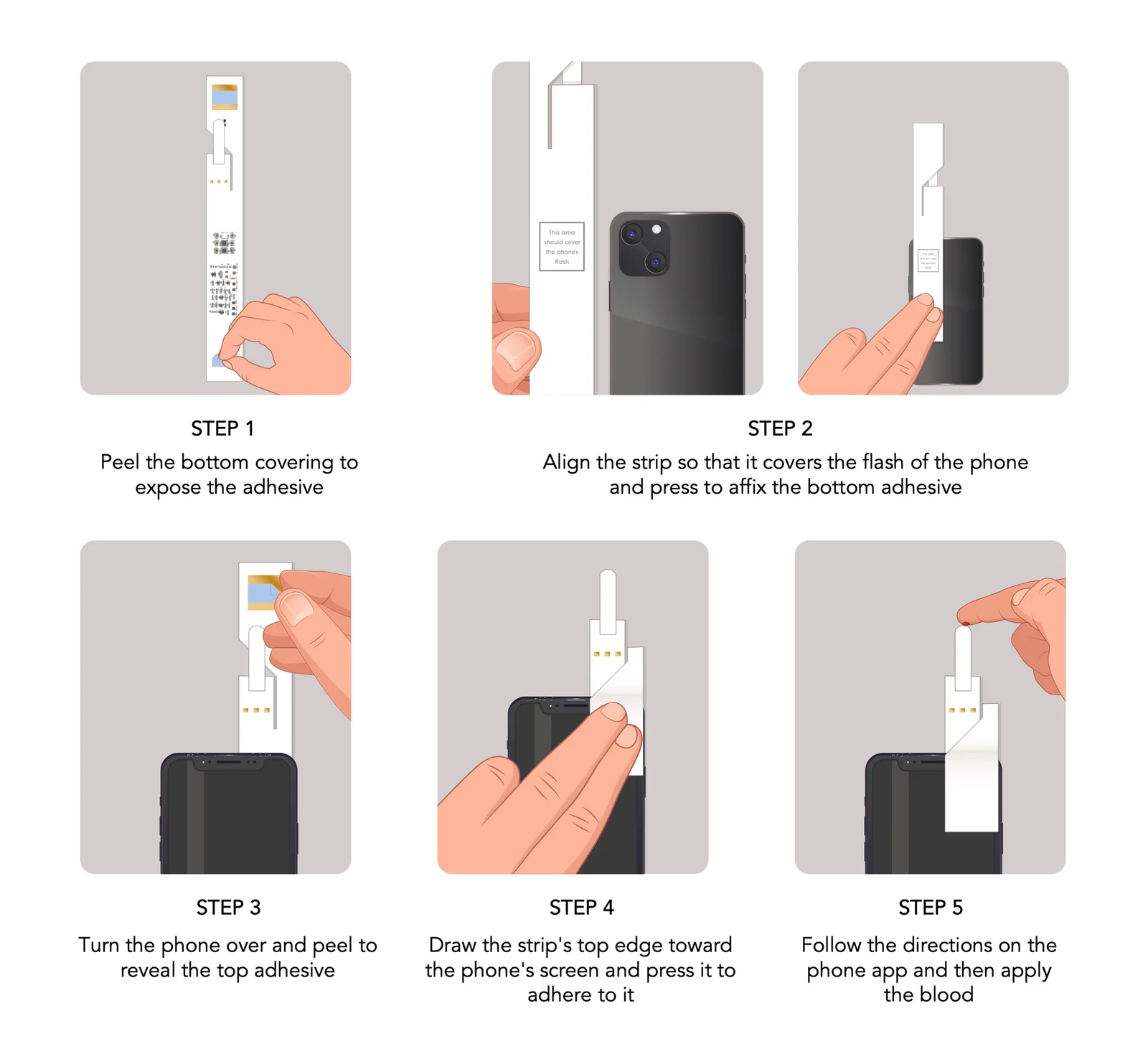

Using it: stick the strip to the phone screen, add a drop of blood, and the result appears in the app.
Using it: stick the strip to the phone screen, add a drop of blood, and the result appears in the app.
